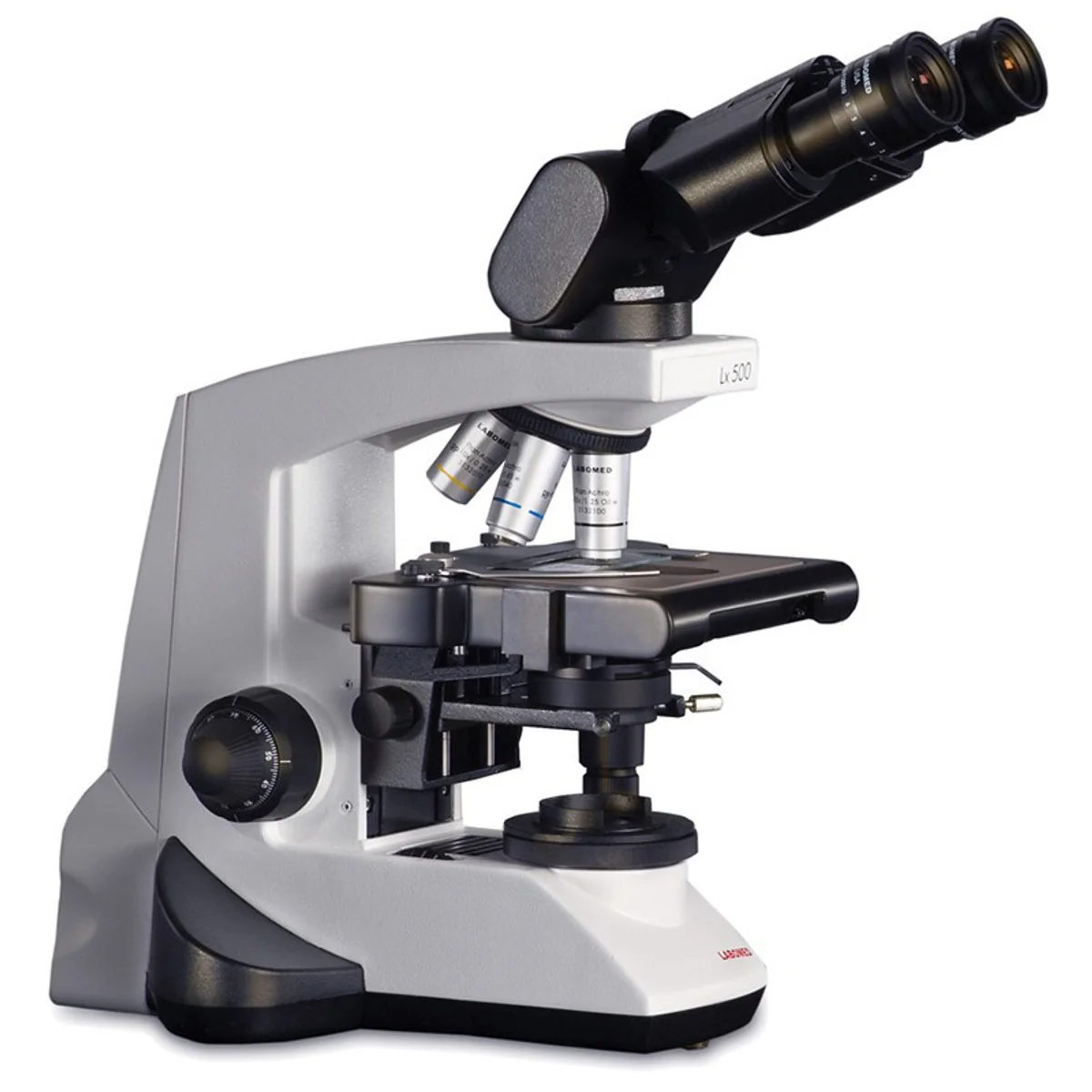

This LABOMED Lx 500 ergonomic binocular is configured with Plan 2.5x, 4x, 10x, 20x and 40x objectives, a scratch resistance ceramic rackless stage to ensure safety and maximization of your workstation space, LED illumination with a flip top condenser for use with low or high magnifications.

Suitable for Mohs screening.

Product Specifications

Stand	Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Body	Siedentopf Ergonomic Binocular 0° - 25° inclinable, 360° rotatable, Inter-pupillary distance 47 - 75mm with height adjustment
Eyepiece	Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated
Nosepiece	Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives	RP2 series Infinity Corrected DIN Plan Achromatic objectives 2.5x, 4x, 10x, 20x, 40x (spring loaded), antifungal coated
Mechanical stage	Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Y travel range 76mm x 50mm. Double specimen holder
Condenser	Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides
Focusing	Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation
Illumination	Koehler LED illumination with intensity, built-in rechargeable battery for cordless operation. LED lamp life is up to 100,000 hours
Electrical	Universal input 100V - 240V AC, 50/60 Hz. Built-in voltage stabilizer
Warranty	5-year manufacturer warranty.
Certification	UL, CE, ISO 9001:2000 and ISO 13485:2003

Product Brochure

Used | Refurbished Pathology and Mohs Microscopes

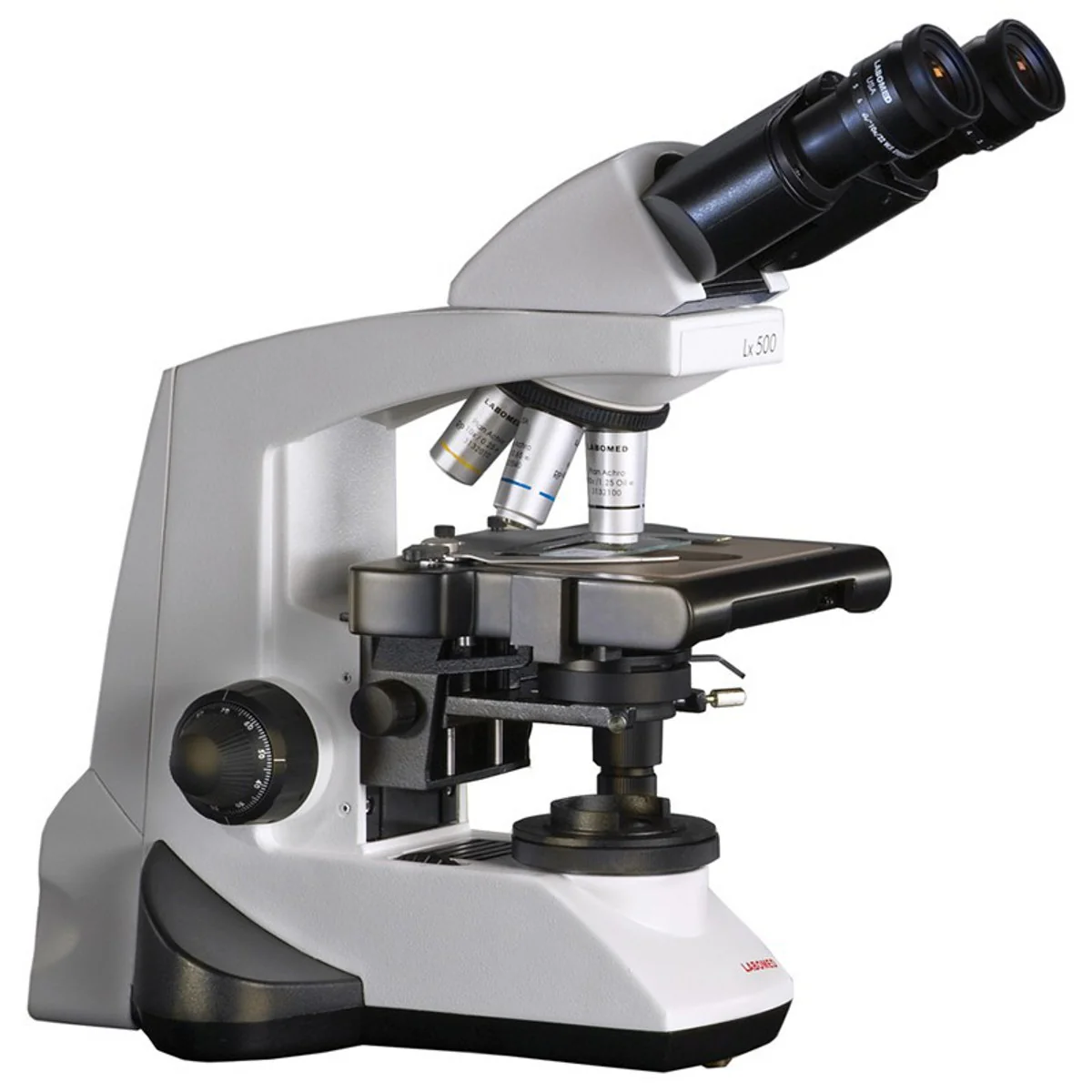

Labomed Lx500 Binocular LED Cordless - Pathology Microscope

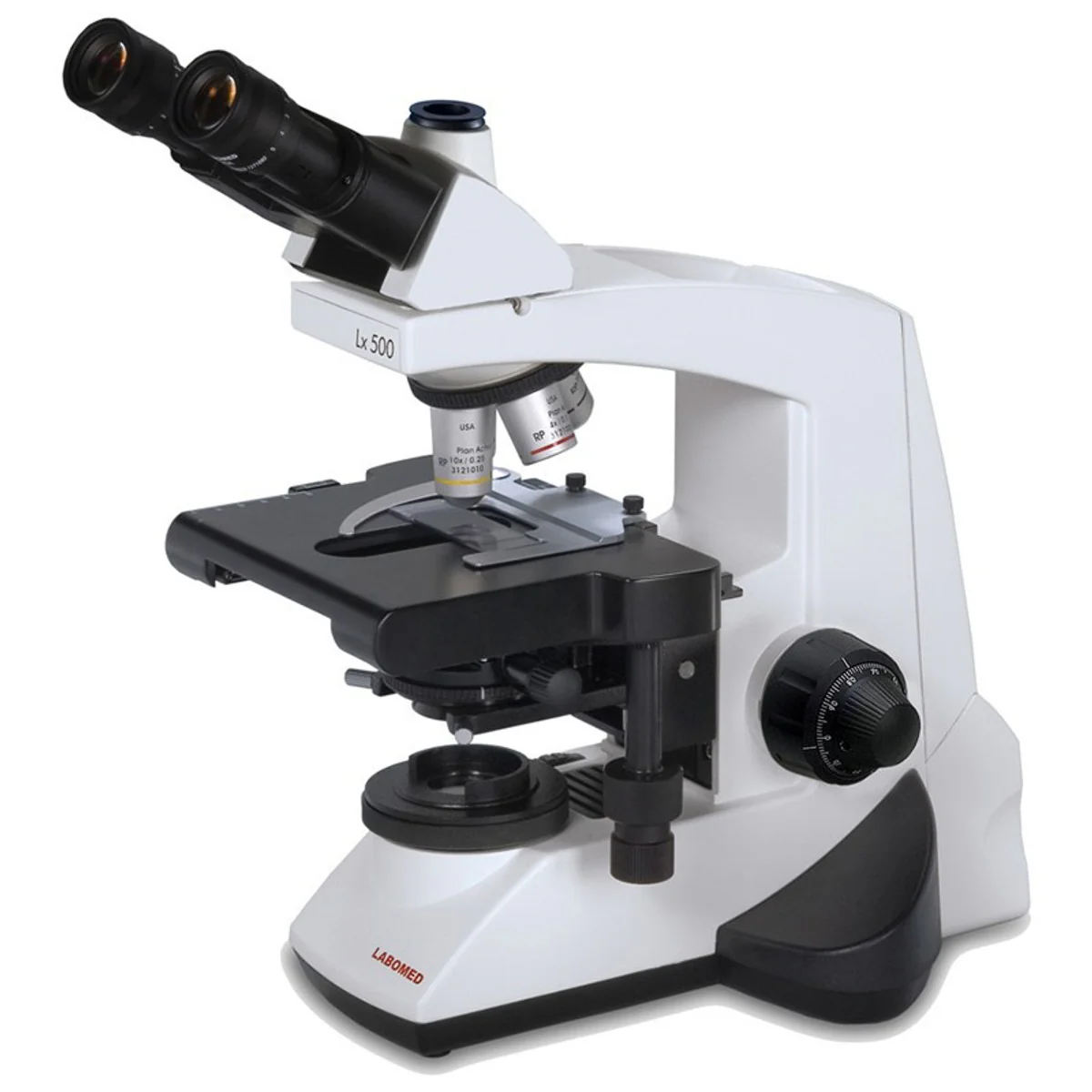

Labomed Lx500 Trinocular LED Cordless - Pathology Microscope
