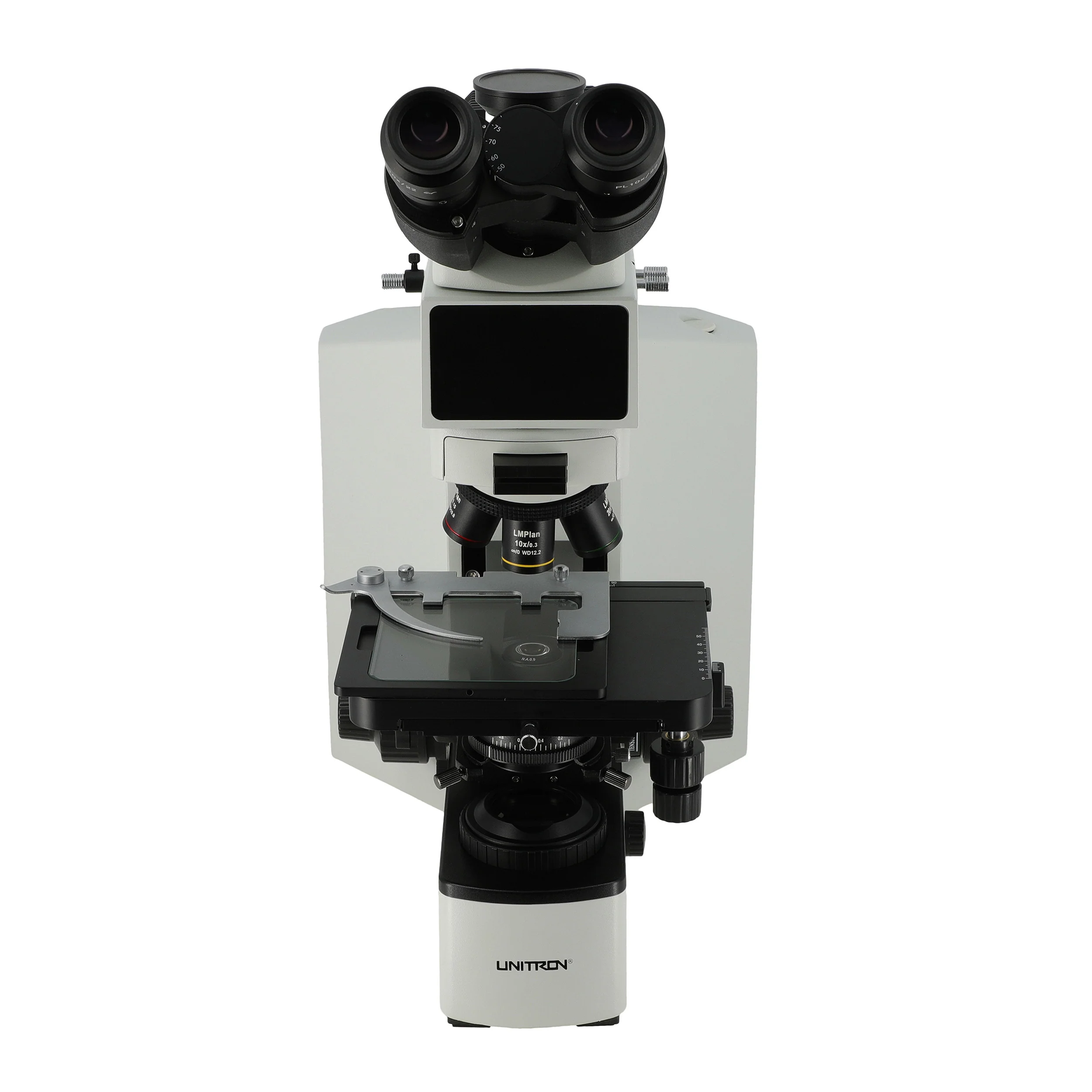

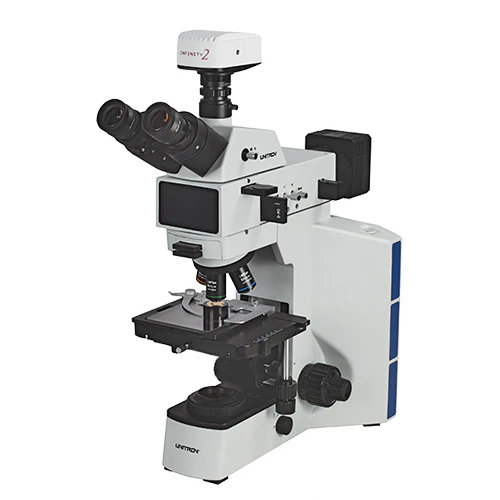

Unitron EXAMET-5 Metallurgical Microscope with Reflected & Transmitted Illumination
The EXAMET-5 is a new industrial metallurgical microscope designed for brightfield, material science applications, metal manufacturing, metallurgy, fabrics/textiles, wafers, optoelectronics, composites and microelectronics.
The advanced Semi-Apo LWD M Infinity Plan Optics, ergonomic design, and digital capabilities make the EXAMET-5 Series an outstanding and cost effective choice for today’s modern metallurgist. The EXAMET-5 Series is available with either reflected illumination or with reflected and transmitted illumination.
Specifications
- Trinocular viewing head, inclined 30°; viewing split 100% binocular, or 50% binocular / 50% trinocular
- Widefield 10x eyepieces with a 23mm field of view
- Infinity LWD M Plan Achromat 5x, 10x, 20x objectives, Infinity LWD M Plan semi-Apo 50x objective
- Reversed quintuple nosepiece
- Interpupillary distance adjustment 54mm – 75mm
- Mechanical Stage (175mm x 145mm), 76mm (X) x 42mm (Y) movement range
- Low position coaxial focusing system with tension adjustment
- Observation height of up to 30mm
- 5-watt variable LED reflected illuminator with field and aperture diaphragm
- 5-watt LED transmitted illuminator with field diaphragm
- Condenser with swing-out top lens, condenser iris diaphragm, N.A. 0.9
- Universal power supply (90v-240v)
- Shipping weight 43lbs.
