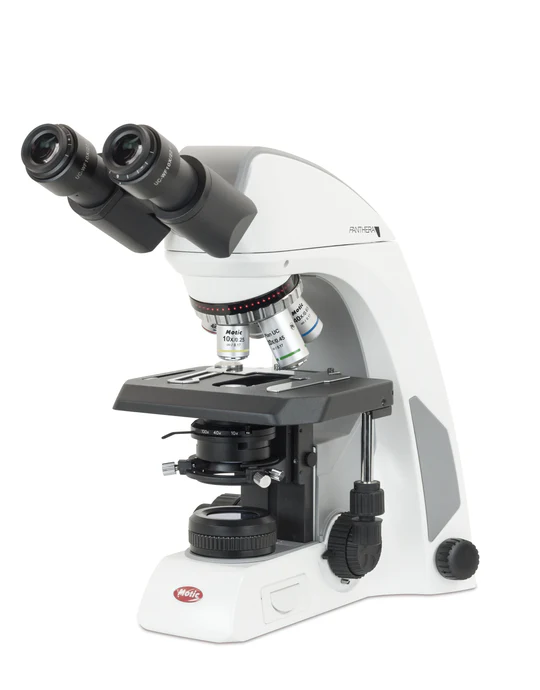

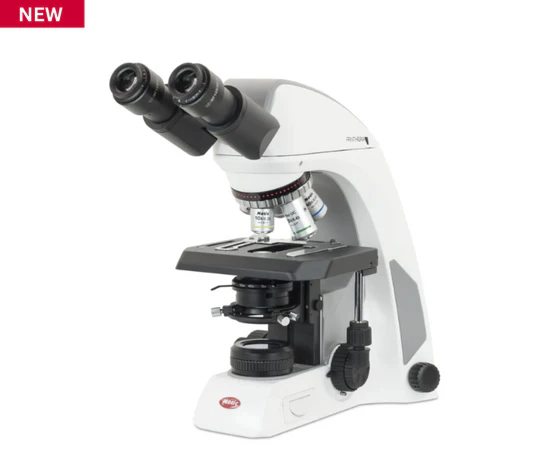

Motic PANTHERA CLOUD Microscope

Product image 1
Product image 2

Motic PANTHERA CLOUD Microscope

Motic PANTHERA CLOUD Microscope

Streamline your workflow with Panthera Cloud! With the Smart CAM digital head and the ImagingOnDevice System, this SMART scope enables you to work directly from your microscope to an HDMI screen or tablet. The LAN port offers users the option to work through DigiClass or remote sharing.

    Specifications

    Model Panthera Cloud
    Observation tube Binocular head, Siedentopf type 25°, 360° swiveling
    Optical system Colour Corrected Infinity Optical System (CCIS®)
    Sensor Type CMOS
    Sensor Size 1/2.5"
    Capture Resolution Info 8MP
    Condenser Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
    Darkfield Optional slider/turret
    Data transfer Wi-Fi, HDMI, Ethernet
    Diaphragm Iris diaphragm
    Diopter adjustment On both eyepieces, +/- 4 diopter
    Eyepieces Widefield UC-WF10X/22mm with diopter adjustment
    Filter holder On top of the illuminator with fixing cap
    Fine focus precision 2µm
    Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
    Focusing stroke 25mm
    Illumination features Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
    Illumination interchangeability Halogen/LED and LED color temperature interchangeability
    Inclination 25° inclined, 360° swivelling
    Interpupillary distance 48-75mm
    Live display mode through Ethernet 1280x720, 1920x1080 pixels (Full HD)
    Live display mode through HDMI 1920x1080 (Full HD)
    Live display mode through Wi-Fi 1920x1080 (Full HD)
    Nosepiece Reversed quintuple, coded
    Objective classification CCIS® UC Plan Achromatic (Pb free), DIN
    Objective mounting thread W 4/5"x1/36" (RMS standard)
    Objectives 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)
    Other features USB 2.0 for external Devices (x2)
    Phase contrast Optional slider/turret
    Polarization Optional add-on
    Stage Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder
    Stage size 185x145mm
    Stand type Upright
    Standard contrast technique Brightfield
    Transmitted illumination Koehler LED 3W & Quartz halogen 6V/30W with intensity control
    Travel range X&Y 75x50mm
    Upper limit stop Upper limit stop preset but adjustable
    Software ImagingOnDevice System (Panthera App embeded)
    Transformer Internal
    Power supply 110-240V (CE)
    Accessories included Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, halogen bulb, LED module, HDMI Cable, Wi-Fi USB dongle, calibration slide
    Dimensions LxWxH 282x210x394mm
    Weight Net 8.8kg

    $1,582.20

    Original: $4,520.56

    -65%
    Motic PANTHERA CLOUD Microscope—

    $4,520.56

    $1,582.20

    Product Information

    Shipping & Returns

    Description

    Streamline your workflow with Panthera Cloud! With the Smart CAM digital head and the ImagingOnDevice System, this SMART scope enables you to work directly from your microscope to an HDMI screen or tablet. The LAN port offers users the option to work through DigiClass or remote sharing.

      Specifications

      Model Panthera Cloud
      Observation tube Binocular head, Siedentopf type 25°, 360° swiveling
      Optical system Colour Corrected Infinity Optical System (CCIS®)
      Sensor Type CMOS
      Sensor Size 1/2.5"
      Capture Resolution Info 8MP
      Condenser Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
      Darkfield Optional slider/turret
      Data transfer Wi-Fi, HDMI, Ethernet
      Diaphragm Iris diaphragm
      Diopter adjustment On both eyepieces, +/- 4 diopter
      Eyepieces Widefield UC-WF10X/22mm with diopter adjustment
      Filter holder On top of the illuminator with fixing cap
      Fine focus precision 2µm
      Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
      Focusing stroke 25mm
      Illumination features Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
      Illumination interchangeability Halogen/LED and LED color temperature interchangeability
      Inclination 25° inclined, 360° swivelling
      Interpupillary distance 48-75mm
      Live display mode through Ethernet 1280x720, 1920x1080 pixels (Full HD)
      Live display mode through HDMI 1920x1080 (Full HD)
      Live display mode through Wi-Fi 1920x1080 (Full HD)
      Nosepiece Reversed quintuple, coded
      Objective classification CCIS® UC Plan Achromatic (Pb free), DIN
      Objective mounting thread W 4/5"x1/36" (RMS standard)
      Objectives 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)
      Other features USB 2.0 for external Devices (x2)
      Phase contrast Optional slider/turret
      Polarization Optional add-on
      Stage Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder
      Stage size 185x145mm
      Stand type Upright
      Standard contrast technique Brightfield
      Transmitted illumination Koehler LED 3W & Quartz halogen 6V/30W with intensity control
      Travel range X&Y 75x50mm
      Upper limit stop Upper limit stop preset but adjustable
      Software ImagingOnDevice System (Panthera App embeded)
      Transformer Internal
      Power supply 110-240V (CE)
      Accessories included Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, halogen bulb, LED module, HDMI Cable, Wi-Fi USB dongle, calibration slide
      Dimensions LxWxH 282x210x394mm
      Weight Net 8.8kg
