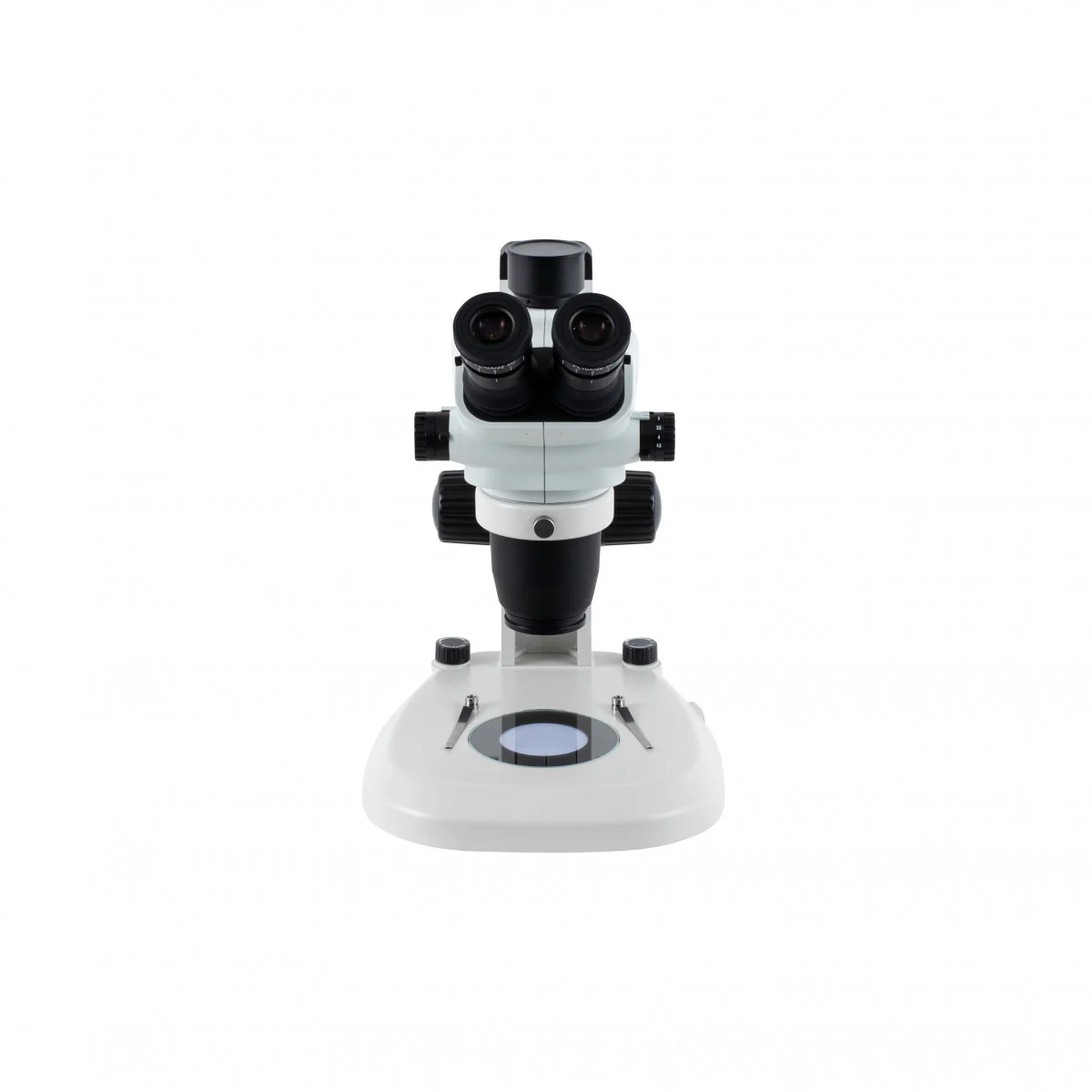

This Unitron Z645 is an excellent stereo microscope for entomology and other inspections

Specifications

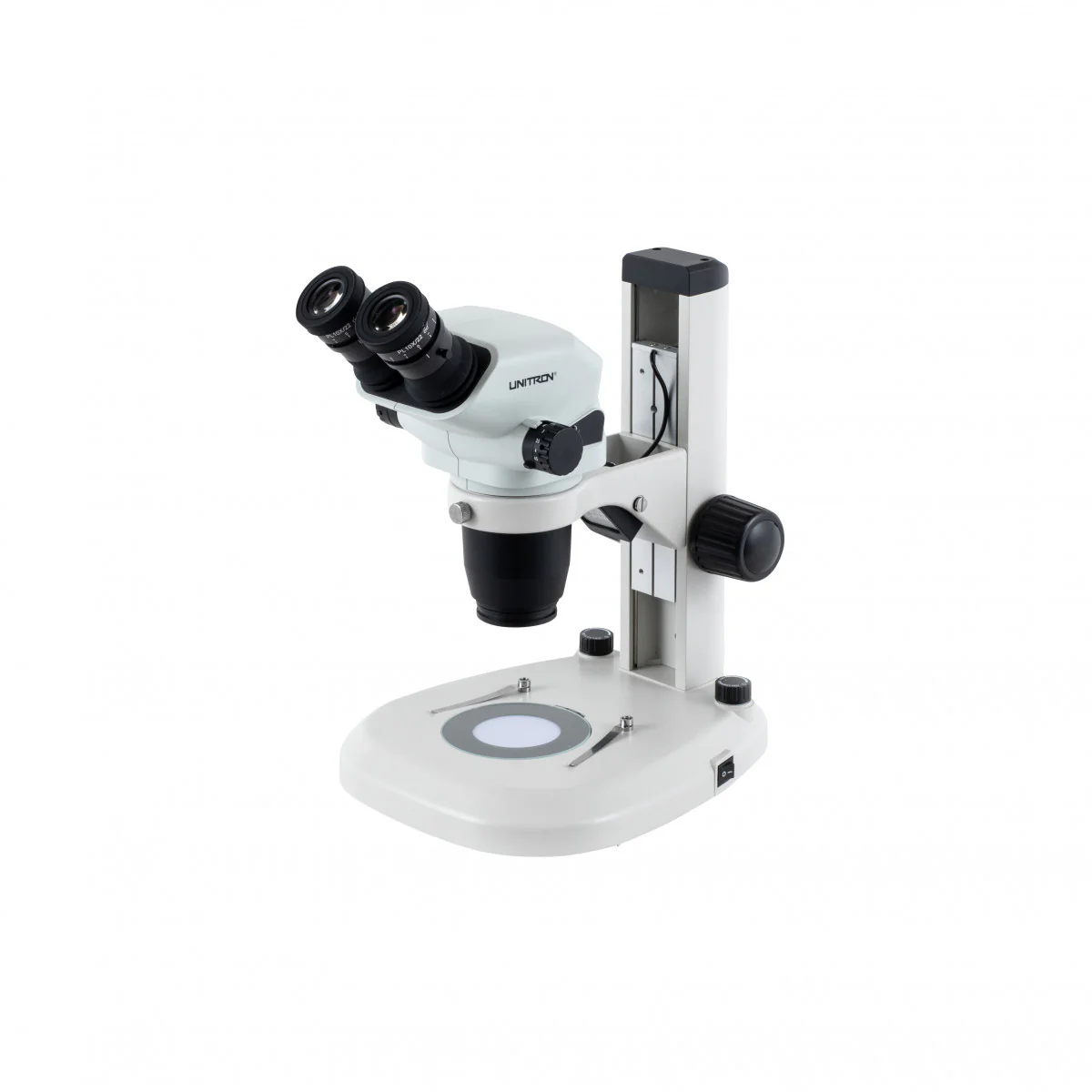

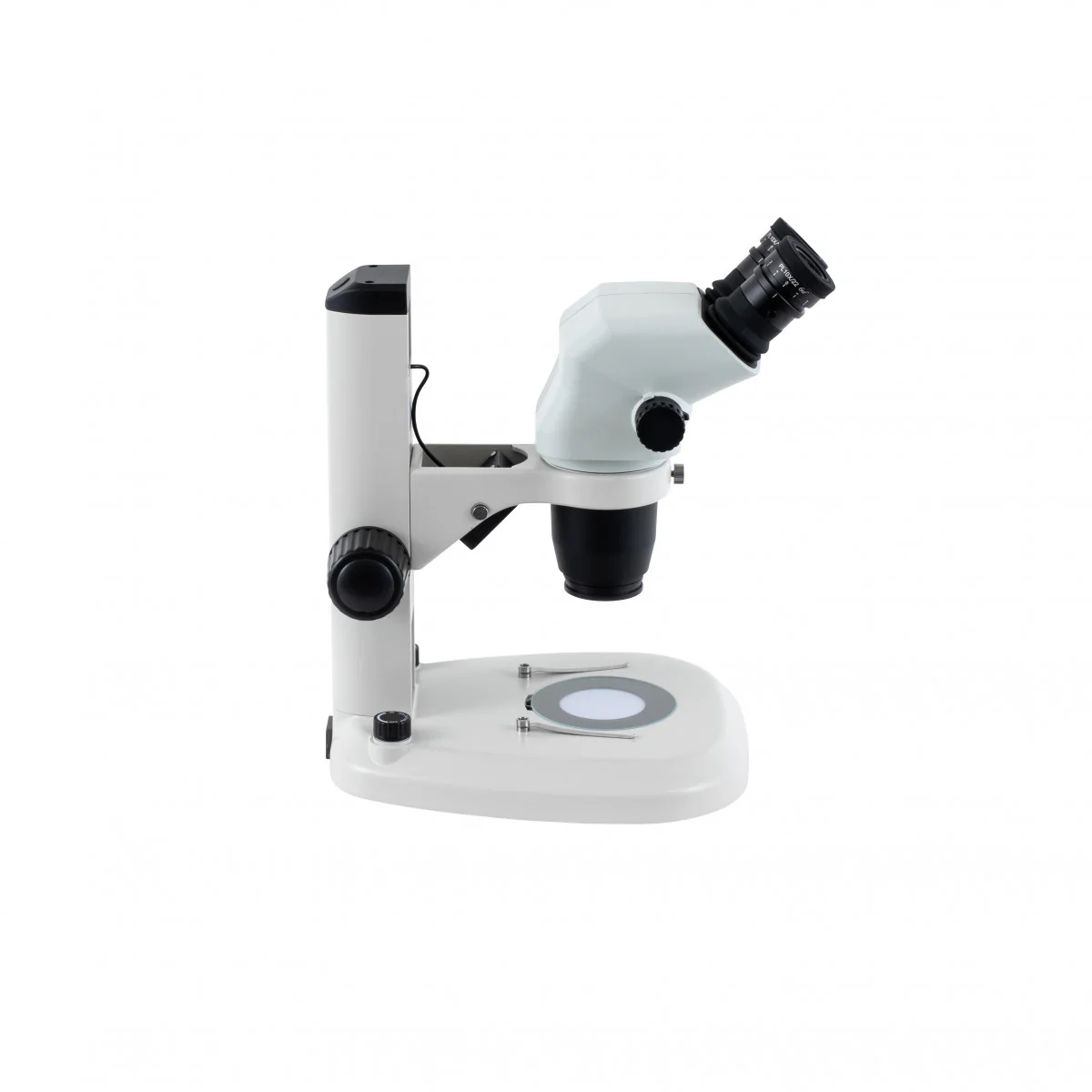

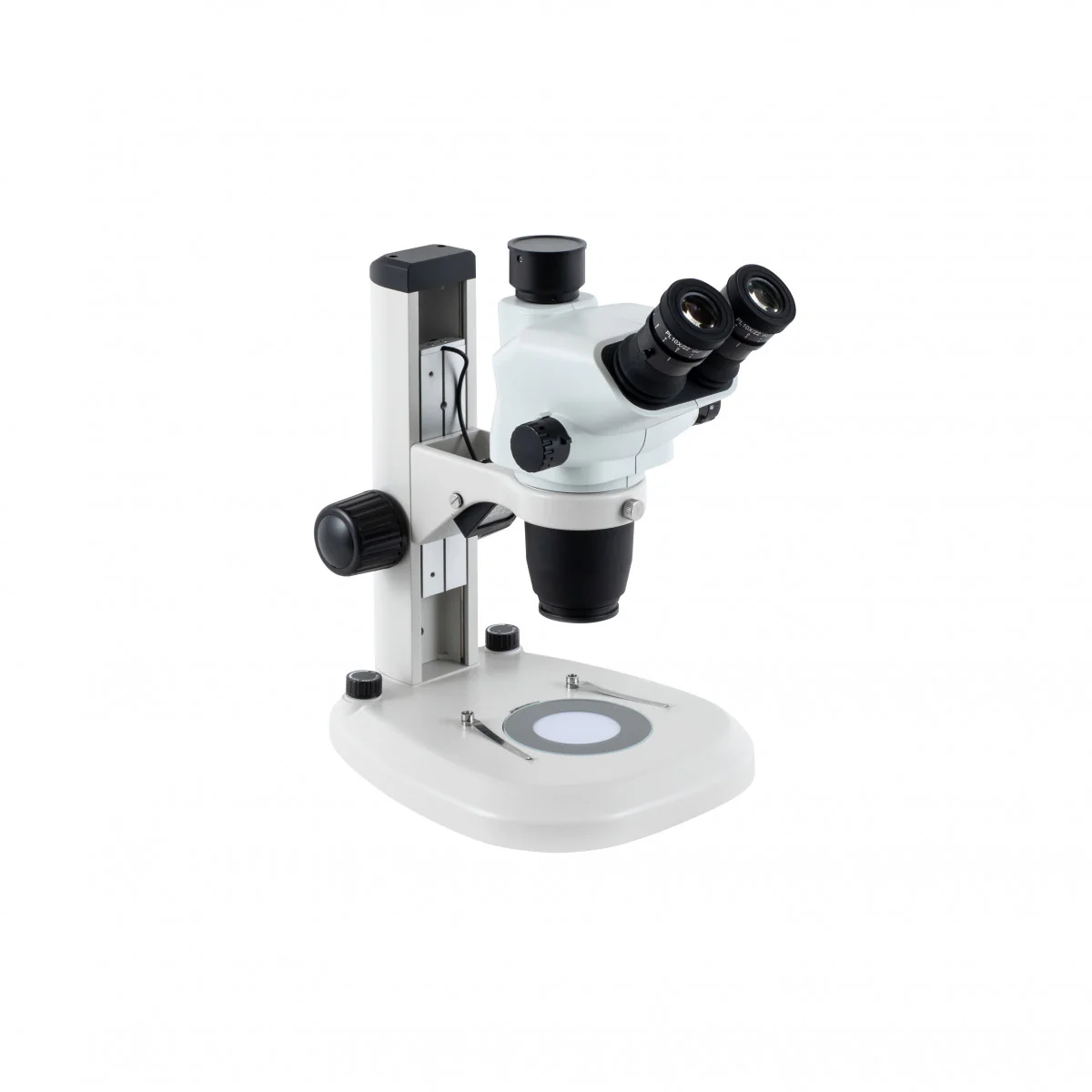

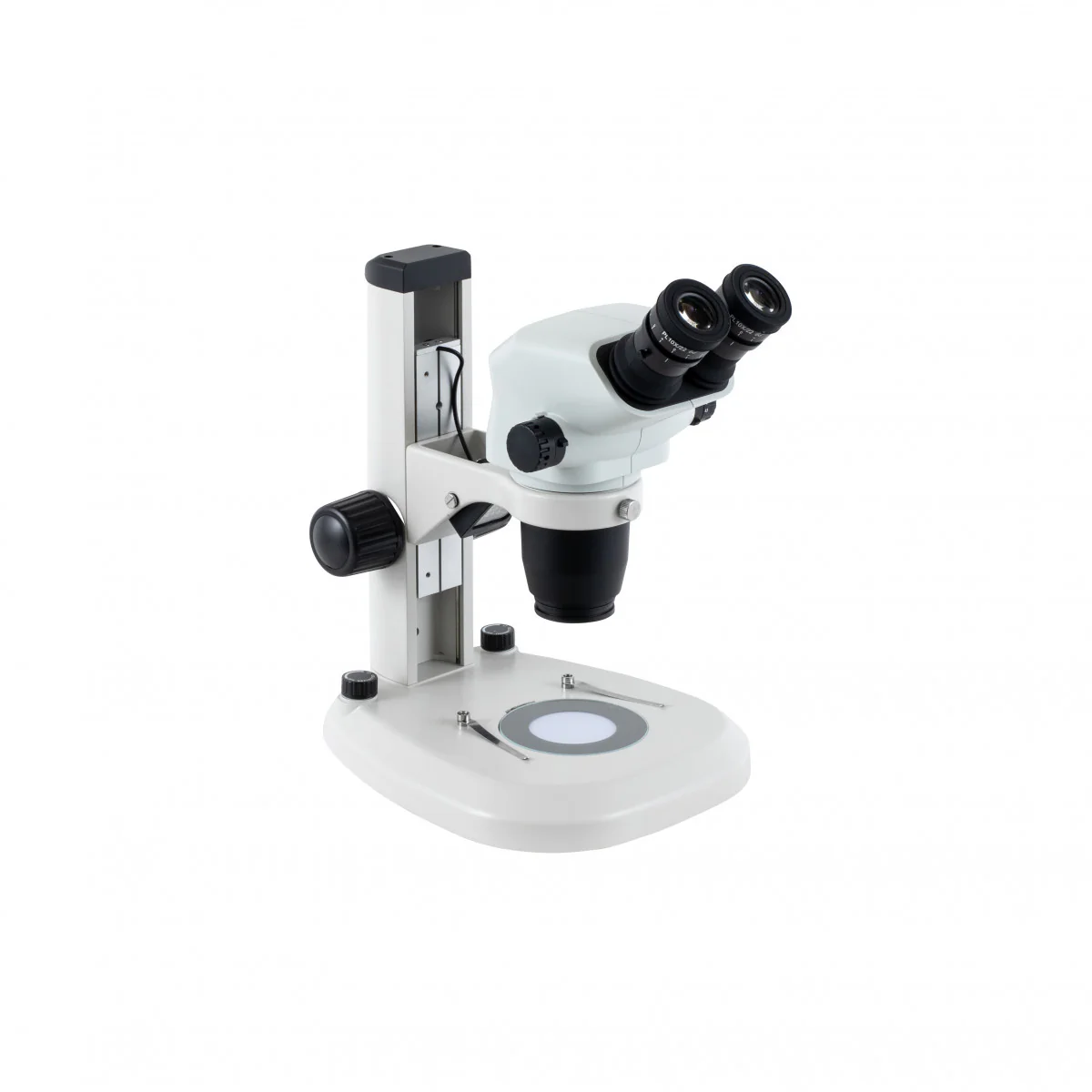

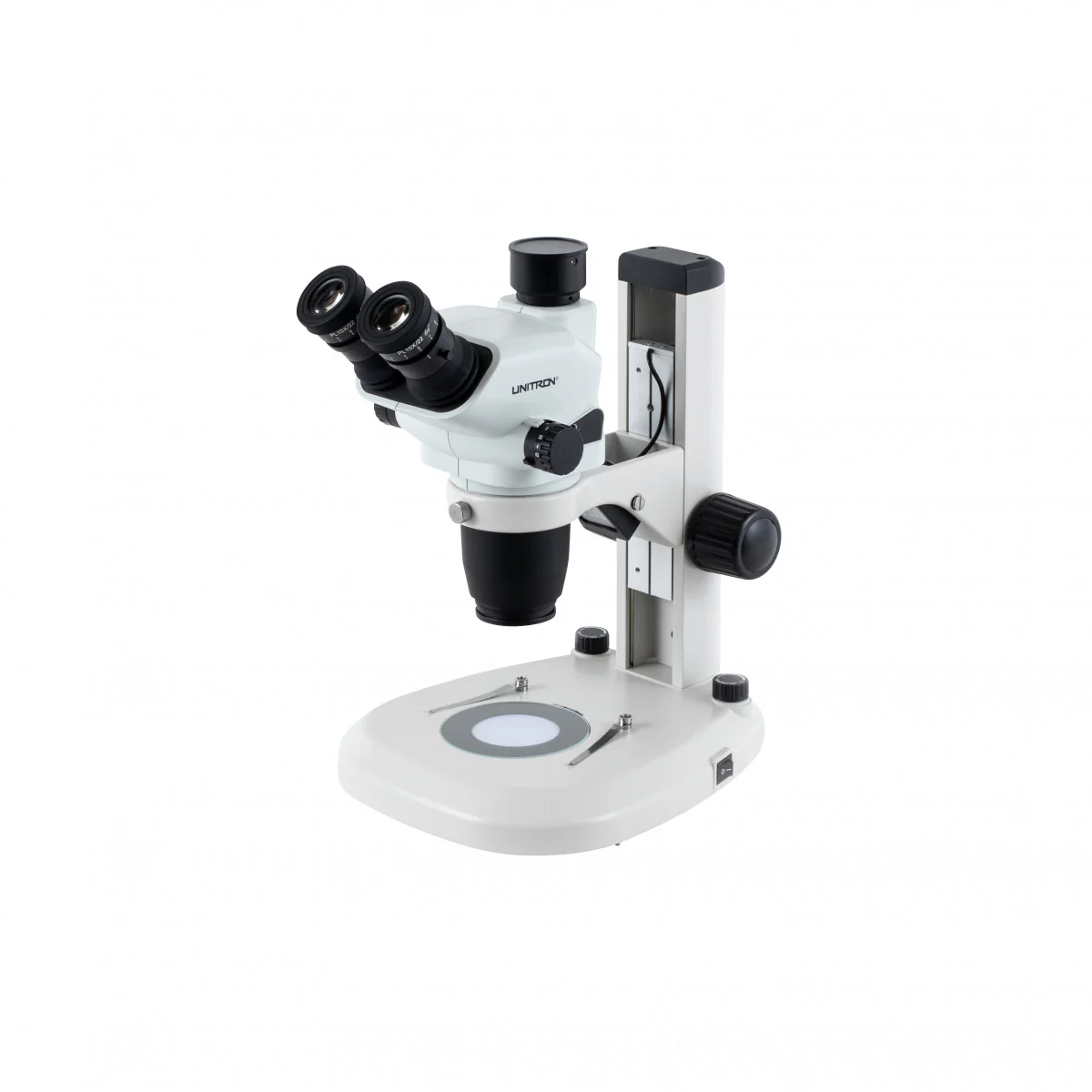

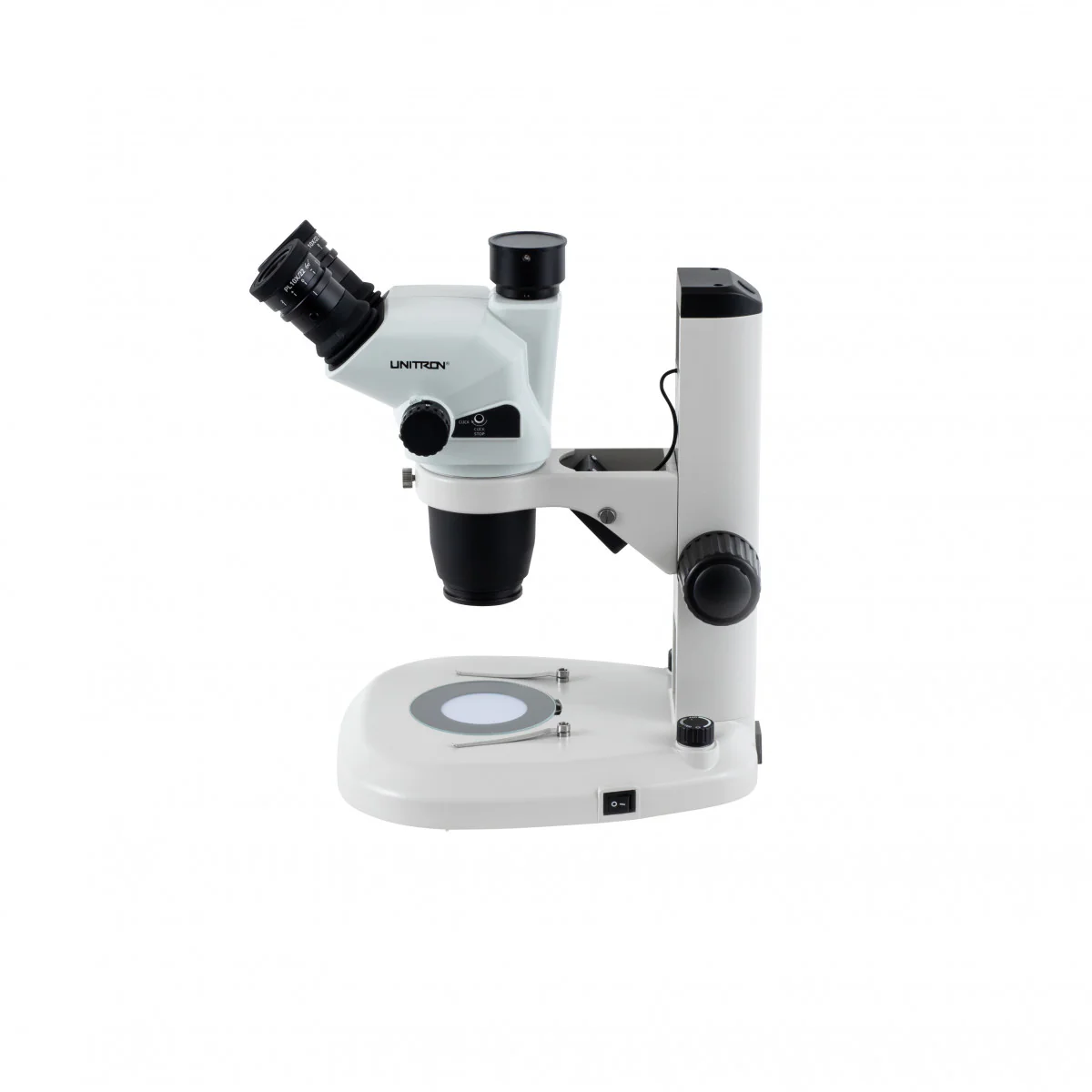

• Available with Binocular viewing head with 45° viewing angle, or Trinocular viewing head with 45° viewing angle
• 1.0x glass lens shield
• Trinocular with fixed 50:50 light split, eyepieces:camera port
• 1.0x glass lens shield
• Widefield 10x/22mm focusing eyepieces
• 0.67x – 4.5x zoom magnification range
• 6.7:1 Zoom ratio
• Magnification range 6.7x-45x (with 10x eyepieces), with click stops at 0.67, 0.8, 1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4 and 4.5; with adjustable zoom range limits
• Interpupillary Distance Adjustment 52mm – 76mm
• Field of view 32.8mm - 4.8mm (1x or no auxiliary lens)
• 110mm working distance (1x or no auxiliary lens)
• LED stand with variable LED incident (12V/2W) and transmitted (12V/4W) illumination, focusing stand with stage clips
• 100mm Clear glass, black & white stage plates
• Base dimensions (LWH): 240mm x 292mm x 318mm
• Universal power supply 100V to 240V, voltage sensitive, integrated
• Airtight and anti-mold design
• Shipping weight 15lbs.

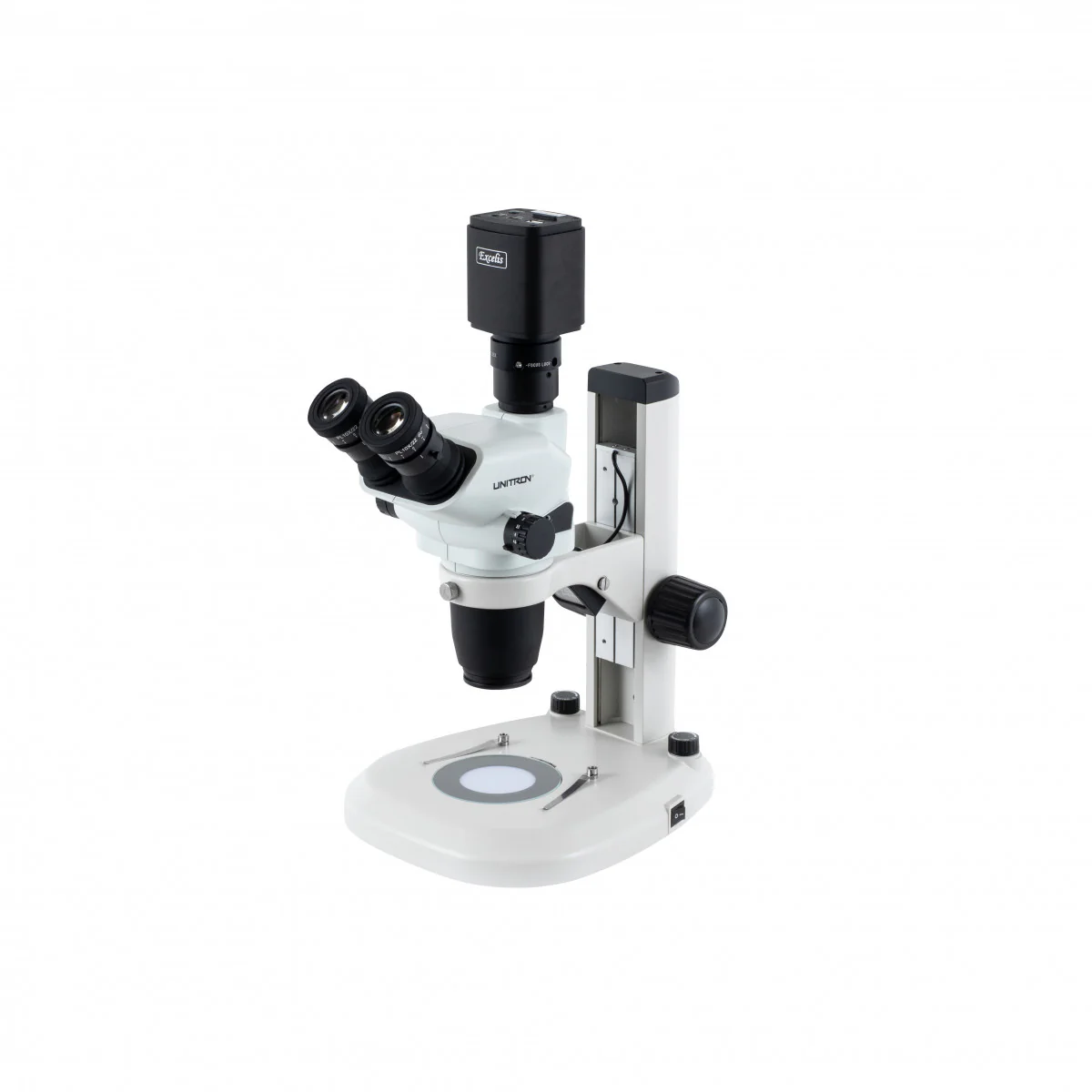

Unitron Z645 Camera Adapters (for trinocular model)

Unitron Z645 Aux Lenses

Unitron Z645 Eyepiece Options

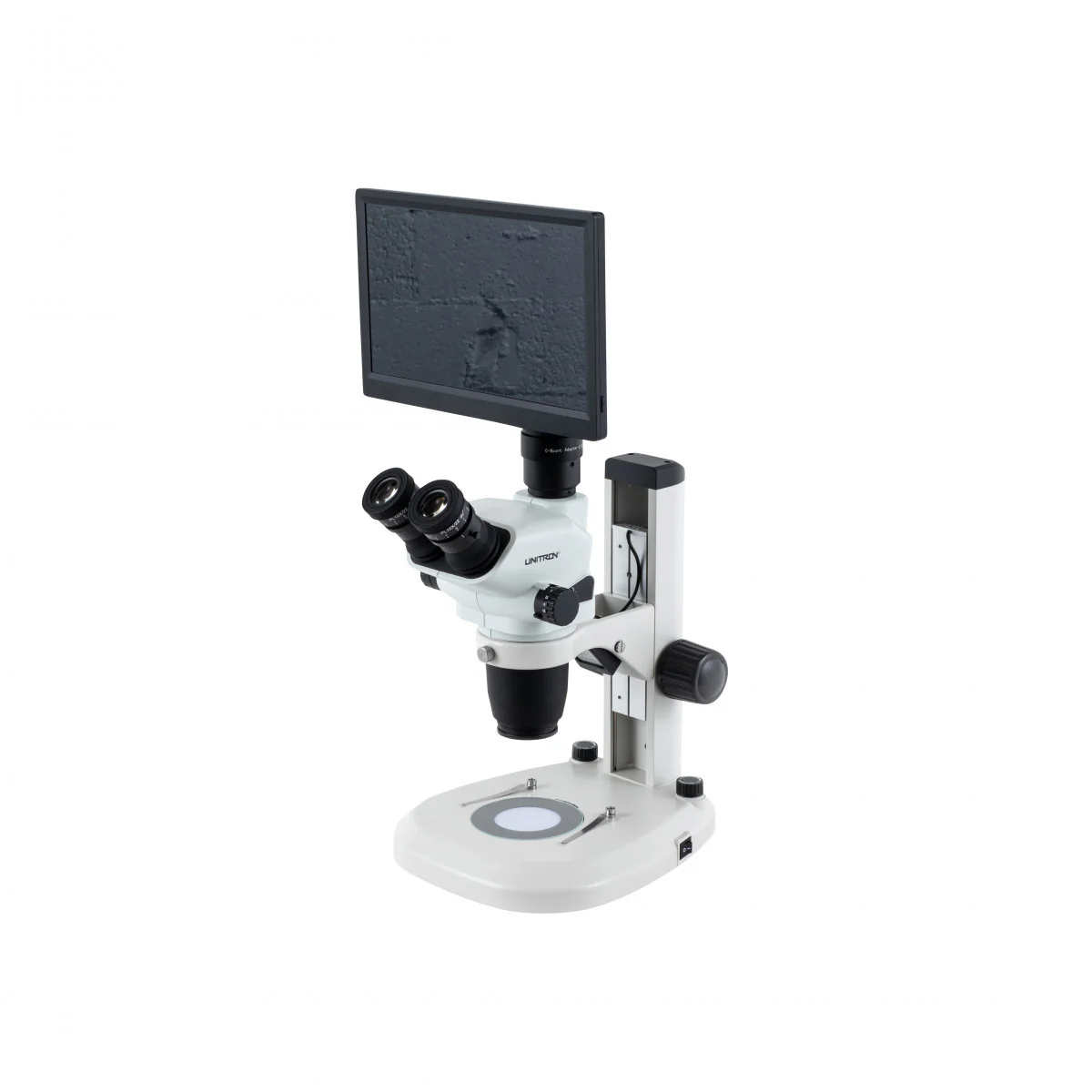

Camera Options
