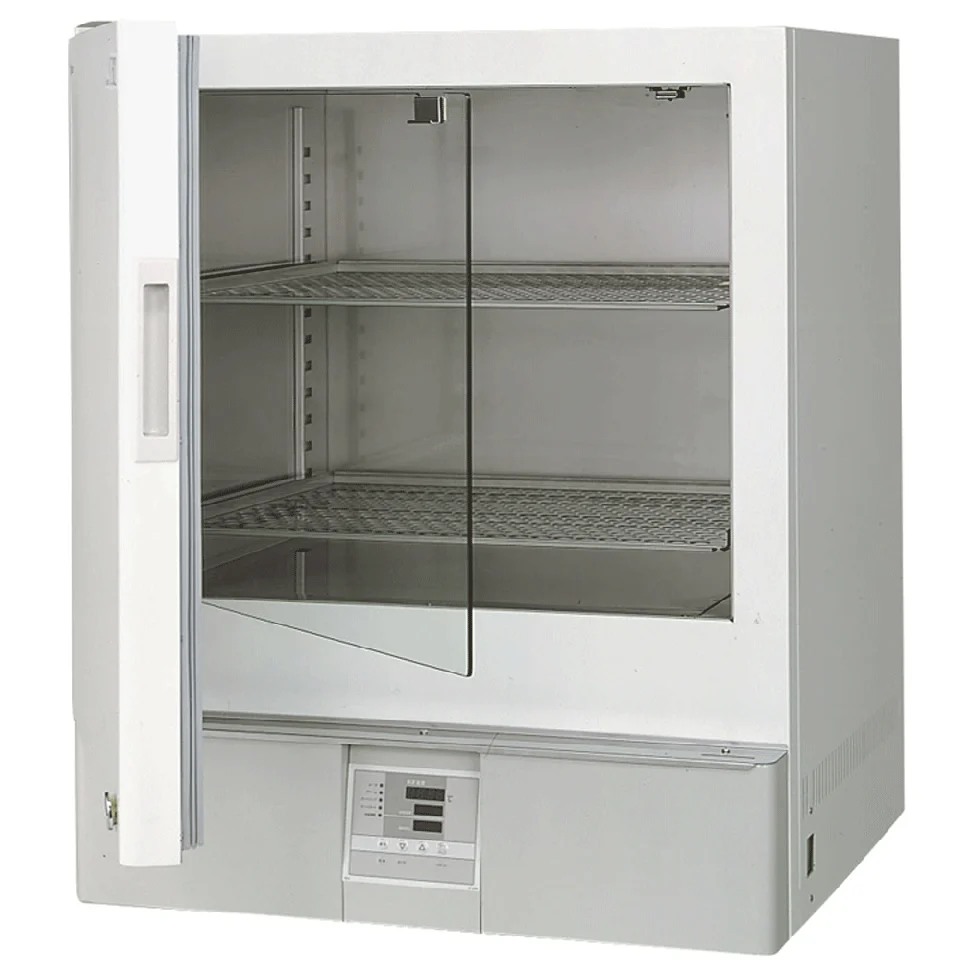

Yamato IC-403CW Natural Convection Benchtop Incubator

Economical general purpose natural convection incubator, 37L 115V

Operation and functions

• Space saving
• All models come with either an observation window (W) for improved visibility or solid door
• Dual door system permits contents to be viewed easily without disrupting atmosphere of the incubator (except IC-100 series)
• Control panel of IC103C/113C located at a higher position for easy access
• Easy to use digital setting display and timer
• Air jacket technology ensures even and efficient heat distribution throughout the chamber
• Standard equipped with various functions such as self-diagnostic, calibration off-set, overheat prevention and key lock
• Models 400 to 900 have an option for communication port (R)

Specifications

MODEL	IC413C
System	Natural convection
Operating Temp. Range	Room temp. +5~80°C
Temp. Control Accuracy	±0.5°C (at 37°C)
Temp. Distribution Accuracy	±1.0°C
Interior	Stainless steel
Exterior	Cold rolled steel plate with melamine resin baking finish
Heat Insulator	Glass fiber
Heater	Iron-chrome wire heater, 0.3kW
Temperature Controller	PID control by microprocessor
Temperature Setting System	Operation menu key and digital setting by ▲▼ keys, digital display
Temperature Display	Measurement temperature: Digital display by 4 digit green LED / Setting temperature: Digital display by 4 digit red LED
Timer	1 min. ~ 99 hrs 59 mins. and 100~999 hrs 50 mins (including timer waiting function)
Operation Function	Fixed temperature, Auto start, Auto stop, Quick Auto stop
Additional Function	Calibration off-set, Key-lock, Power outage compensation
Safety Device	Self diagnostic functions, temp. sensor error, display error, measurement temp. error, auto overheat prevention
Heater Control Circuit	SSR drive system
Sensor	K-thermocouple
Internal Dimensions WxDxH	450 × 480 × 450 mm
External Dimensions WxDxH	560 × 606 × 820 mm
Internal Capacity	97L
Inner Door	Reinforced glass door x 1
Shelf Load Capacity	~15 kg/pc.
Shelf Rest Step Number	9 steps
Power Supply (50/60 Hz)	AC115V 4.5A(with plug) AC220V 2A (no plug, round terminal)
Weight	~45 kg
Shelf / Shelf Brackets	Stainless steel, 2 pcs. / 4pcs.
Optional Items	Stand, Stacking kit, Additional shelf, Cable hole (25/50mm or 30/50mm), External communication terminal (RS485), Temp. output terminal, Time-up output terminal for alarm device



This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.

Product Brochure
